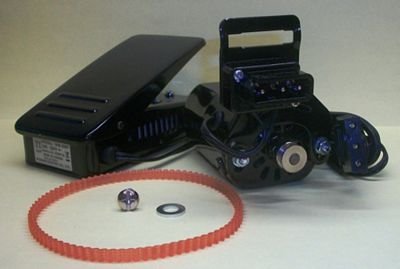

Motor 90 Watt K-Bracket with Foot Control and Cord

Motor, 90 Watt K-Bracket with Foot Control and Cord. Not listed for a specific machine model, so check the specification against the part you are replacing. This is a compatible replacement part rather than a manufacturer-original part.

What this part does

The motor drives the machine, either through a belt (external motor) or directly on the main shaft (internal). Replacement motors for household machines are usually external universal-type motors with a bracket, pulley and carbon brushes.

Specifications

How to tell if this is the right one

Match by the model list and the mount type named (K-bracket, L-bracket, bolt-on). Check the voltage, the rotation direction and the pulley type against the old motor.

Signs you need this part

The motor hums but does not turn, runs only at full speed, sparks heavily at the brushes, or smells hot. Check carbon brushes before condemning the motor.

Fitting it

Unplug the machine. Remove the belt, unbolt the old motor from its bracket, fit the new motor, refit the belt and tension it. Connect the leads exactly as the old ones were.

Questions about this part

Which machines does this motor fit?

The distributor's listing does not name specific models for this part, so we do not claim a fitment. Compare the specification on this page with the part you are replacing, or send us your machine's model number and we will check.

Is it the motor or the foot control?

Test with a known-good foot control first if you can. A motor that hums with the control fully pressed is usually the motor or its brushes; a motor that does nothing is more often the control or the cord.

How long does delivery take?

Orders are dispatched from our distributor's US warehouse. We do not hold stock ourselves and cannot promise same-day dispatch; current delivery estimates are shown at checkout, and we will email you if an item is back-ordered.
