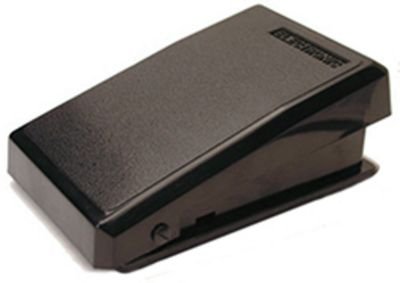

Foot Control Electronic Large 1.0 Amp

Foot Control, Electronic Large 1.0 Amp. Not listed for a specific machine model, so check the specification against the part you are replacing. Supplied as a compatible aftermarket part — it is not a manufacturer-original part.

What this part does

The foot control (foot pedal) regulates motor speed. Electronic controls use a variable resistor or an optical sensor; older controls use a carbon pile. The cord, the plug and the internal resistor all wear, and a failed control is one of the most common reasons a working machine stops running.

Specifications

How to tell if this is the right one

Foot controls are matched by the plug on the machine and the control type the motor expects. Use the model list; a control with the right plug but the wrong resistance or voltage can run the motor flat out, not at all, or damage the circuit board.

Signs you need this part

The machine runs only at full speed, will not start, starts erratically, or the pedal is hot or smells. A frayed cord at the plug is a safety fault — replace the control.

Fitting it

Unplug the machine. Disconnect the old control at the machine socket (and the wall socket if the control carries the mains lead), connect the new one and test at low speed first.

Questions about this part

Which machines does this foot control fit?

The distributor's listing does not name specific models for this part, so we do not claim a fitment. Compare the specification on this page with the part you are replacing, or send us your machine's model number and we will check.

My machine runs at full speed only — is it the pedal?

Usually. Try a known-good control first if you can borrow one. If the fault stays with the machine, the problem is the motor controller or circuit board, not the pedal.

Does this include the power cord?

Only if the listing says 'with cord'. Many controls are supplied as the pedal with its lead to the machine; the mains lead is separate.

How long does delivery take?

Orders are dispatched from our distributor's US warehouse. We do not hold stock ourselves and cannot promise same-day dispatch; current delivery estimates are shown at checkout, and we will email you if an item is back-ordered.
