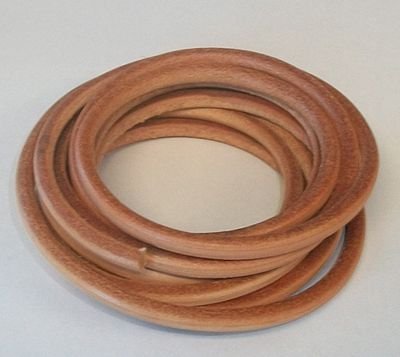

Belt Leather 5/16in Approximately 10 Feet

Belt, Leather 5/16in Approximately 10 Feet. Not listed for a specific machine model, so check the specification against the part you are replacing. It is a compatible (aftermarket) part, not a manufacturer-original part.

What this part does

Drive belts transfer motion from the motor to the handwheel (motor belt) or between internal shafts (timing or hook drive belt). Rubber belts stretch, harden and crack with age; a cogged timing belt that has lost teeth will put the hook out of time.

Specifications

How to tell if this is the right one

Motor belts are matched by length and profile (round, V or lug/cogged). Use the model list or the stated length. Internal timing belts are model-specific and must match the tooth count exactly.

Signs you need this part

The motor runs but the machine does not turn or turns slowly, a squeal under load, visible cracks, or (for a timing belt) sudden skipped stitches and thread jams after the belt slipped a tooth.

Fitting it

Motor belts on household machines are reached by removing the handwheel cover; loosen the motor mount to slip the belt on, then re-tension so there is about 6 mm of play. Internal timing belts require the machine to be re-timed — a technician job.

Questions about this part

Which machines does this belt fit?

The distributor's listing does not name specific models for this part, so we do not claim a fitment. Compare the specification on this page with the part you are replacing, or send us your machine's model number and we will check.

How do I measure a motor belt?

Measure the outside circumference of the old belt, or wrap a string around the two pulleys. Belts are sold by length in inches; a belt about half an inch shorter than the measured path gives the right tension.

Lug belt or V belt?

Lug (cogged) belts have teeth on the inside and run on toothed or grooved pulleys. V belts are smooth and run in a V-groove. Match the type the machine came with.
