Brand part Brother CS6000 Parts & Accessories
We hold 6 items whose specification names the CS6000: bobbins & hooks, other parts, needle plates, feed dogs & needle parts, belts, motors & drive. Parts made by Brother are listed under the Brother name. Nothing on this page is assumed from a sibling model — if a part is here, the CS6000 is named on it.
Presser Feet
1 part-
Brand part
Other parts
4 parts-
Brand part -
Brand part -
Brand part -
Brand part
Most-replaced parts on the Brother CS6000
NEEDLE PLATE Brother CS6000 CS100T HS2000 A (XC8565031, $25.50): a needle strike leaves a burr around the hole that snags thread and fabric; on a serger the stitch finger wears and the edge stops forming cleanly.
HOOK Brother CS6000 LS6770 NV900D NV950D (XC4141121, $64.50): a hook with a burr or a worn race skips stitches and shreds the top thread, and rethreading does nothing for it.
Foot Control Jack 120V with Nut Brother CS6000 (XC9830021, $21.50): a foot control that runs at one speed, or not at all, is sealed and cheaper to replace than to repair.

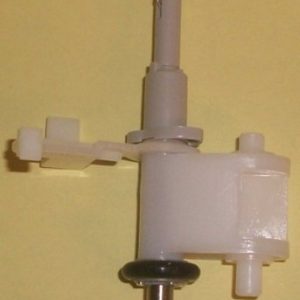

BOBBIN WINDER Brother CS6000 (XC8799021, $21.90): a winder tyre that has hardened spins without winding; the unit replaces as one.
Receptacle Brother ES2000 CS6000 Inlet On/Off (XC8829021, $29): listed because the distributor's specification names this model.
Finding your model number
The model number is on the machine itself, not on the carry case or the manual — look for a plate or sticker on the front of the base, the right-hand side, the back near the power socket, or underneath. On a Brother it is printed as CS6000 and the letters and suffix are part of it; a sibling model with a different suffix can take different parts.
Common problems and the part that fixes them
| Symptom | Likely part on this page | Help page |
|---|---|---|
| Thread loops or nests on the underside | HOOK Brother CS6000 LS6770 NV900D NV950D (XC4141121) | /help/thread-bunching-underneath/ |
| Skipped stitches | HOOK Brother CS6000 LS6770 NV900D NV950D (XC4141121), NEEDLE PLATE Brother CS6000 CS100T HS2000 A (XC8565031) | /help/skipped-stitches/ |
| Needle keeps breaking | HOOK Brother CS6000 LS6770 NV900D NV950D (XC4141121), NEEDLE PLATE Brother CS6000 CS100T HS2000 A (XC8565031) | /help/needle-keeps-breaking/ |
| Machine slow, squealing, or hand wheel turns without the needle moving | Foot Control Jack 120V with Nut Brother CS6000 (XC9830021) |
Related machines
- Brother NV950D — shares 1 part with this model → (no hub — fewer than 3 parts; link the part pages instead)
- Brother NV900D — shares 1 part with this model → /machines/brother/nv900d/
- Brother LS6770 — shares 1 part with this model → (no hub — fewer than 3 parts; link the part pages instead)
- Brother ES2000 — shares 1 part with this model → (no hub — fewer than 3 parts; link the part pages instead)
Frequently asked questions
Which parts do you stock for the Brother CS6000?
6 items whose specification names the CS6000: 3 bobbins & hooks; 1 other parts; 1 needle plates, feed dogs & needle parts; 1 belts, motors & drive. Each one is listed above with its price and whether it is the manufacturer's part, a compatible part, or an accessory cut for this model.
Do these parts also fit the Brother NV950D?
1 of the 6 items on this page name the NV950D as well, because the two models share those parts. The rest do not — check the fits-these-machines list on each part, and see the related machines below.
My CS6000 needs a part that is not listed. Can you get it?
Email the part name and your model number to support@ultimatesewingandvac.com. If the distributor's catalog carries it we will quote it; if the fitment is uncertain we will say so rather than guess.
Do you ship the same day?
No. Orders are released to the warehouse the next business day and tracking is emailed when the parcel ships. We do not hold stock ourselves, so if an item is unavailable after you order we email you first.
